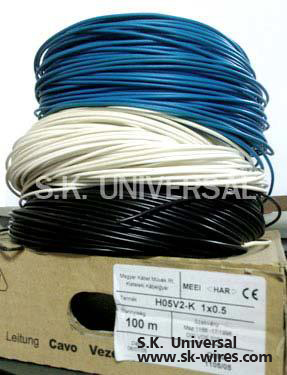

H05V-K / H07V-K, Electrical Switchboard Wiring
H05V-K / H07V-K, Electrical switchboard wiring
H05V-K / H07V-K is mainly used in wiring of switchboard cabinets. The cable is designed to be flexible to facilitate the installation of this cable in the confine space of the cabinets.
Voltage:
H05V-K : 300 / 500 V
H07V-K : 450 / 750 V
Temp. : Fixed : 80 ℃
Cable Construction
• Fine strands of bare copper conductors according to DIN VDE
0295 class 5 and IEC 60228 and HD 383
• PVC insulation, TI1 accordance to DIN VDE 0281 part 3,
IEC 60227-3 and HD 21.3 S3
• Core classification accordance to DIN VDE 0293
• Core colours available in various colours
• PVC self-extinguishing and flame retardant, test method B
according to VDE 0472 part 804 and IEC 60332-1
Technical Data
Standard : According to DIN VDE 0281 part 3,
IEC 60227-3, HD 21.3 S3
Nominal voltage : H05V-K : Uo/U 300/500 V
H07V-K : Uo/U 450/750 V
Temperature range : Flexing : – 5oC to + 70oC
Fixed laying : – 30oC to + 80oC
Testing voltage : 2 KV, 50 Hz
Insulation resistance : Min. 10 MOhm x km
Min. bending radius : 12.5 x cable diameter
